Leaf Spring Crossbow

2024-8-31

Summary:

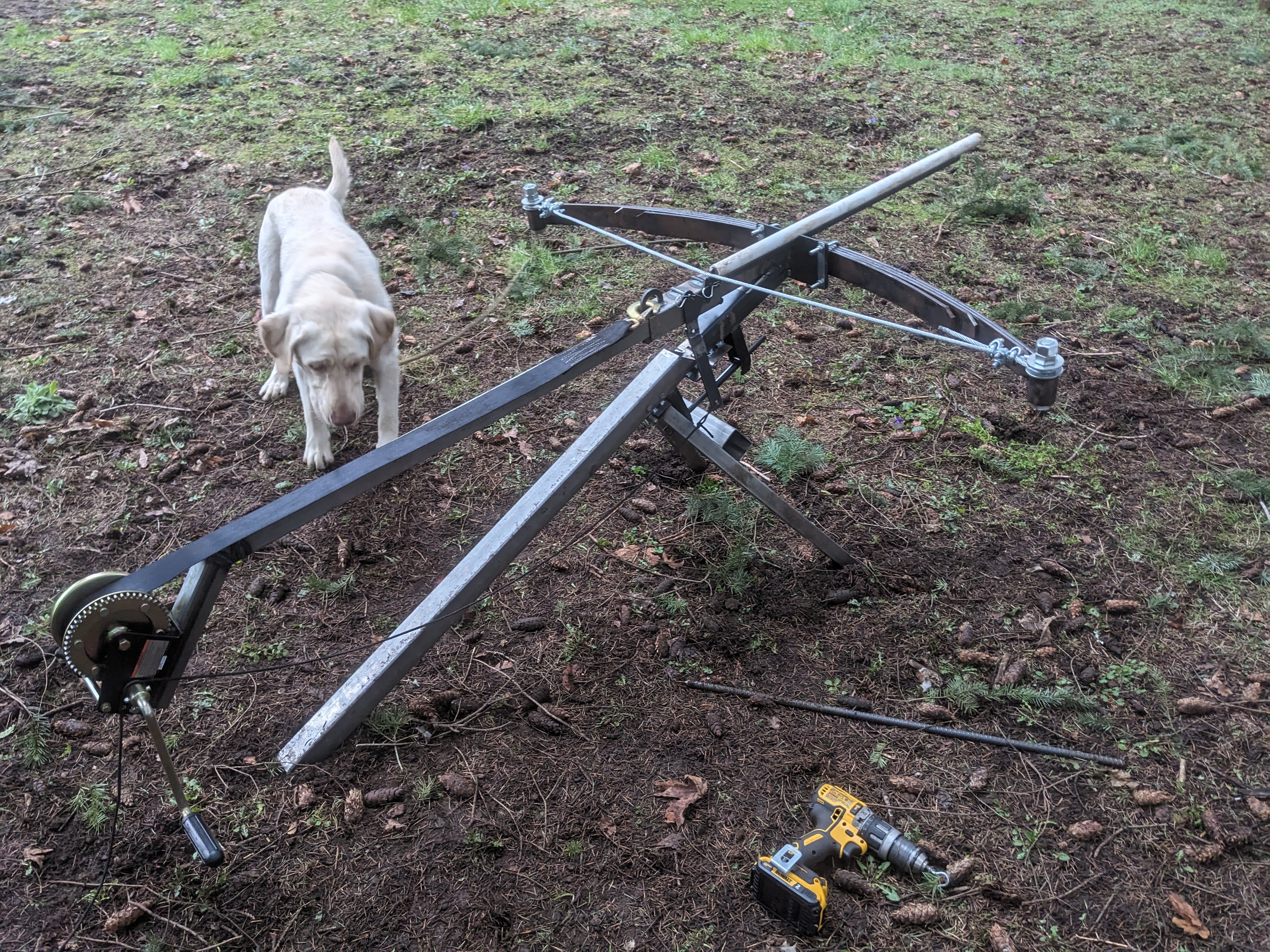

Designed and fabricated a custom bow system with integrated trigger mechanism and adjustable elevation hinge

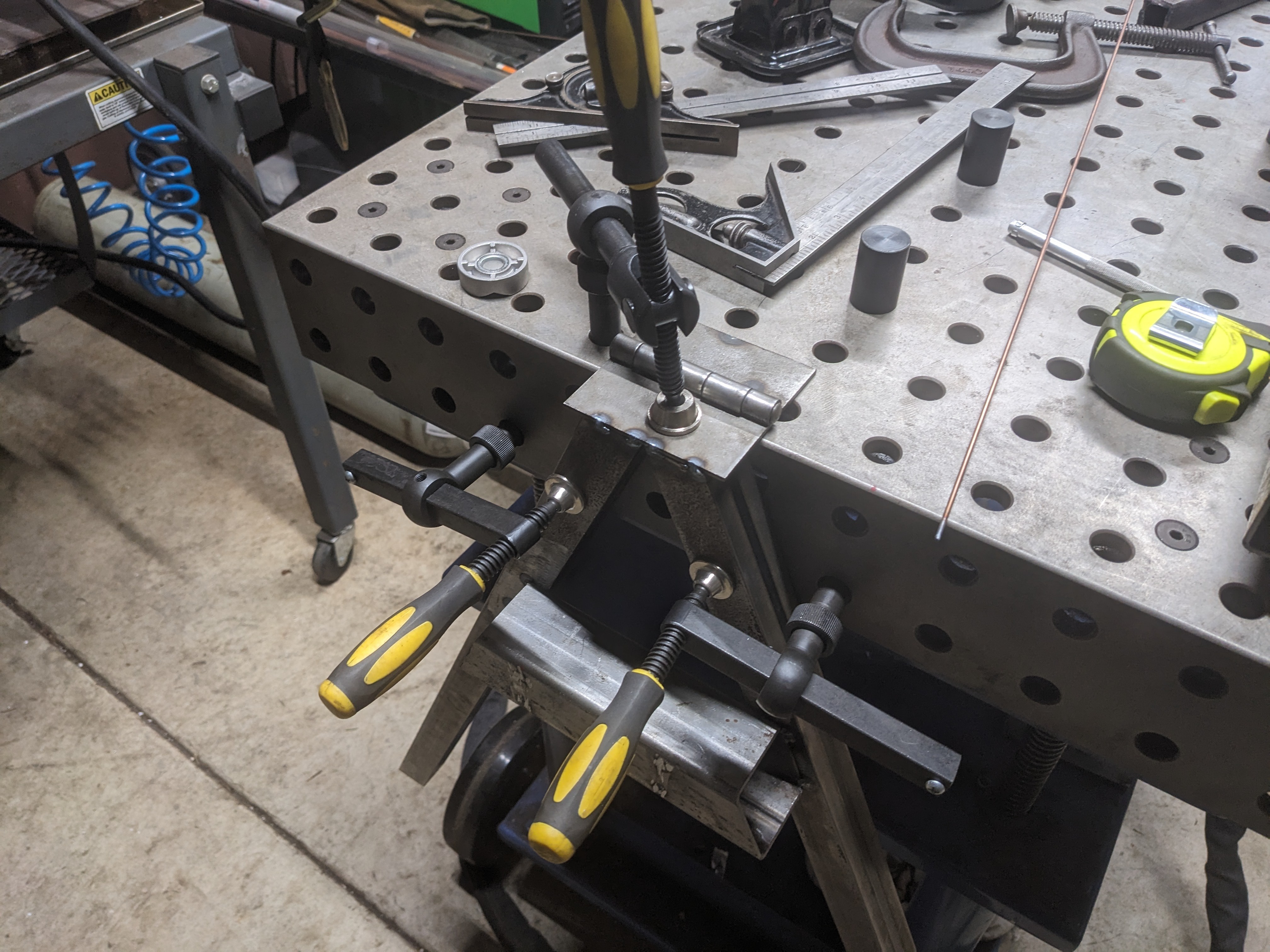

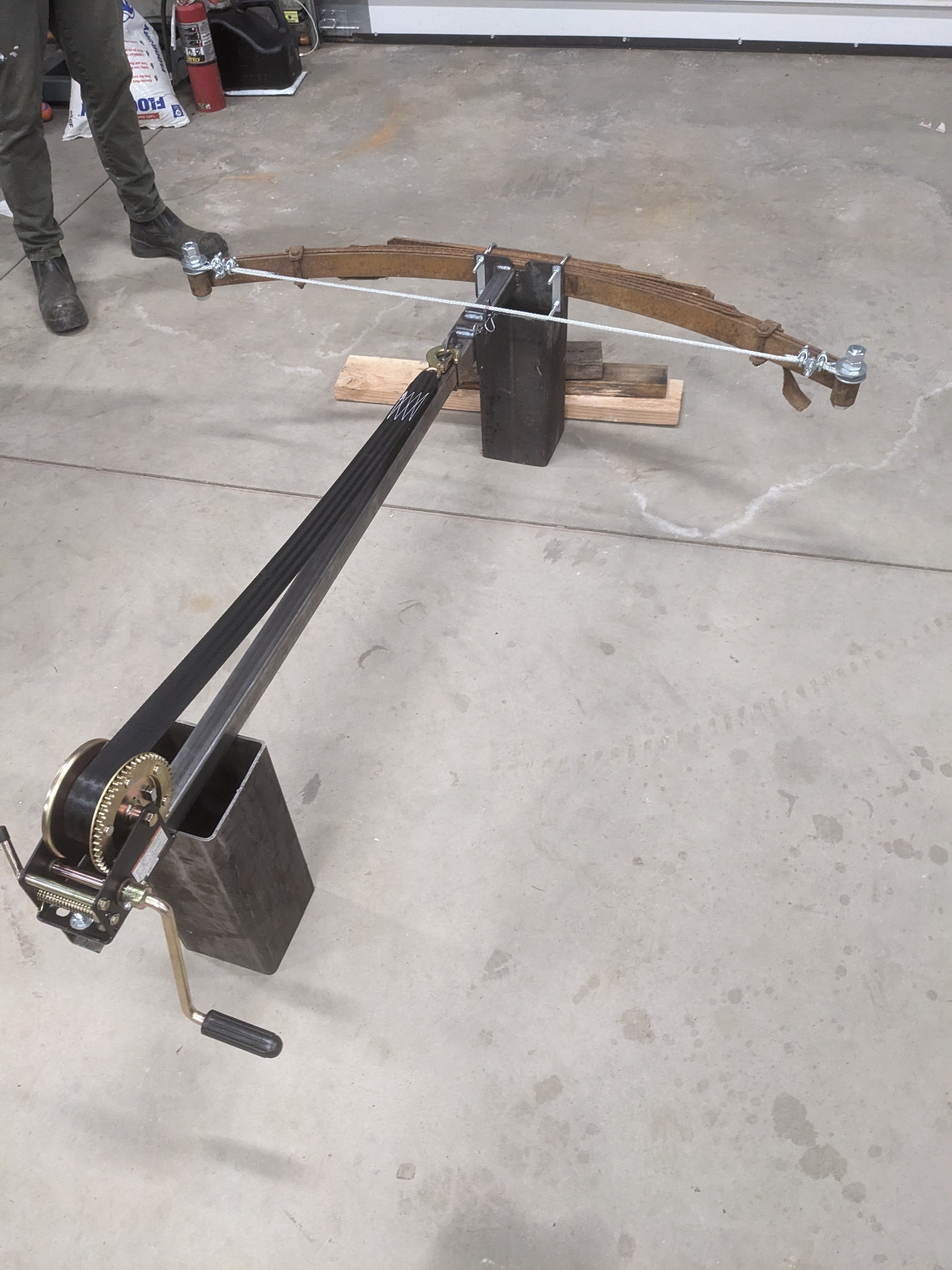

Constructed a rigid bow mount frame using welding to withstand high string tension loads

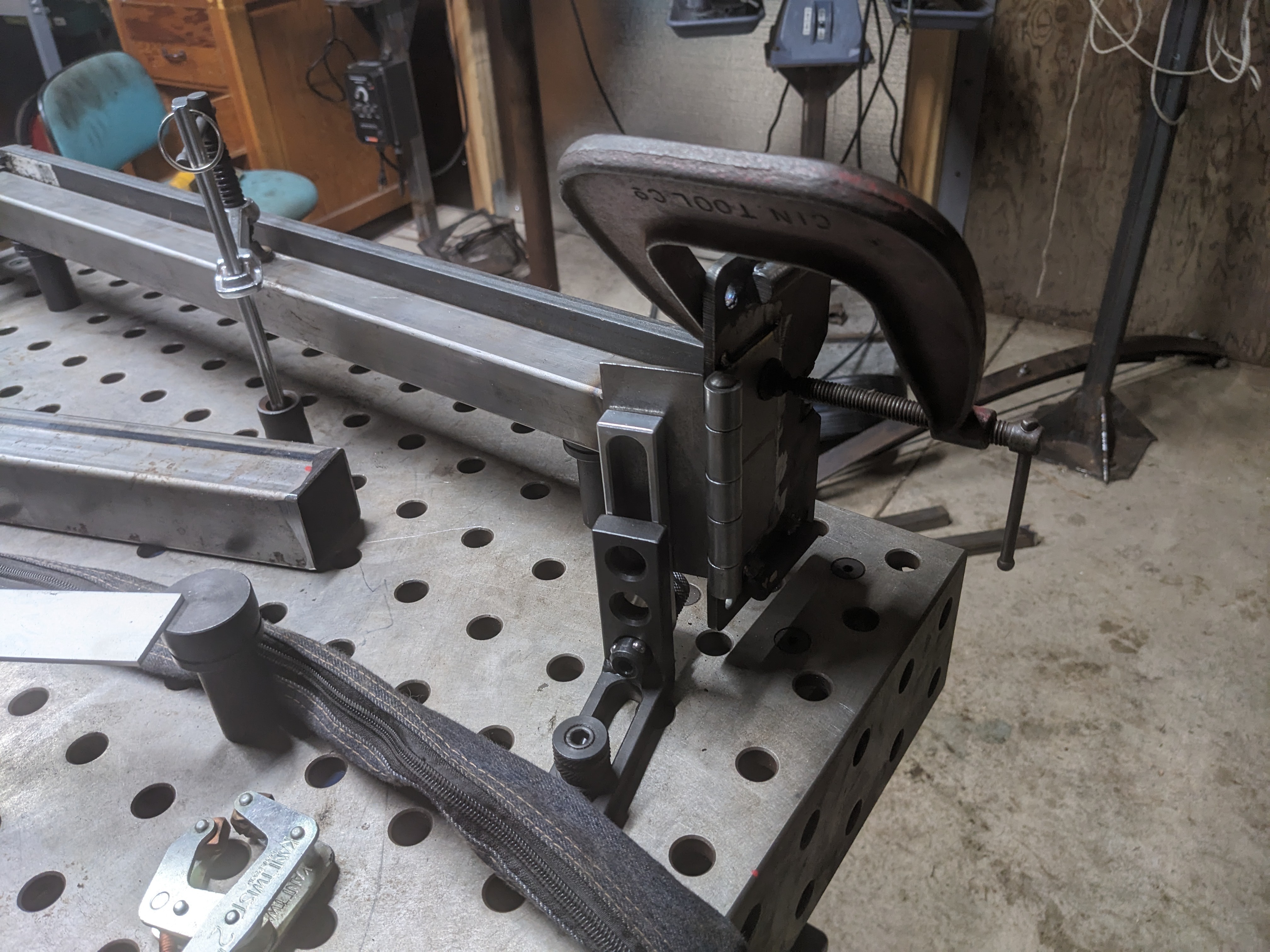

Developed a precision elevation adjustment hinge for fine-tuned aiming

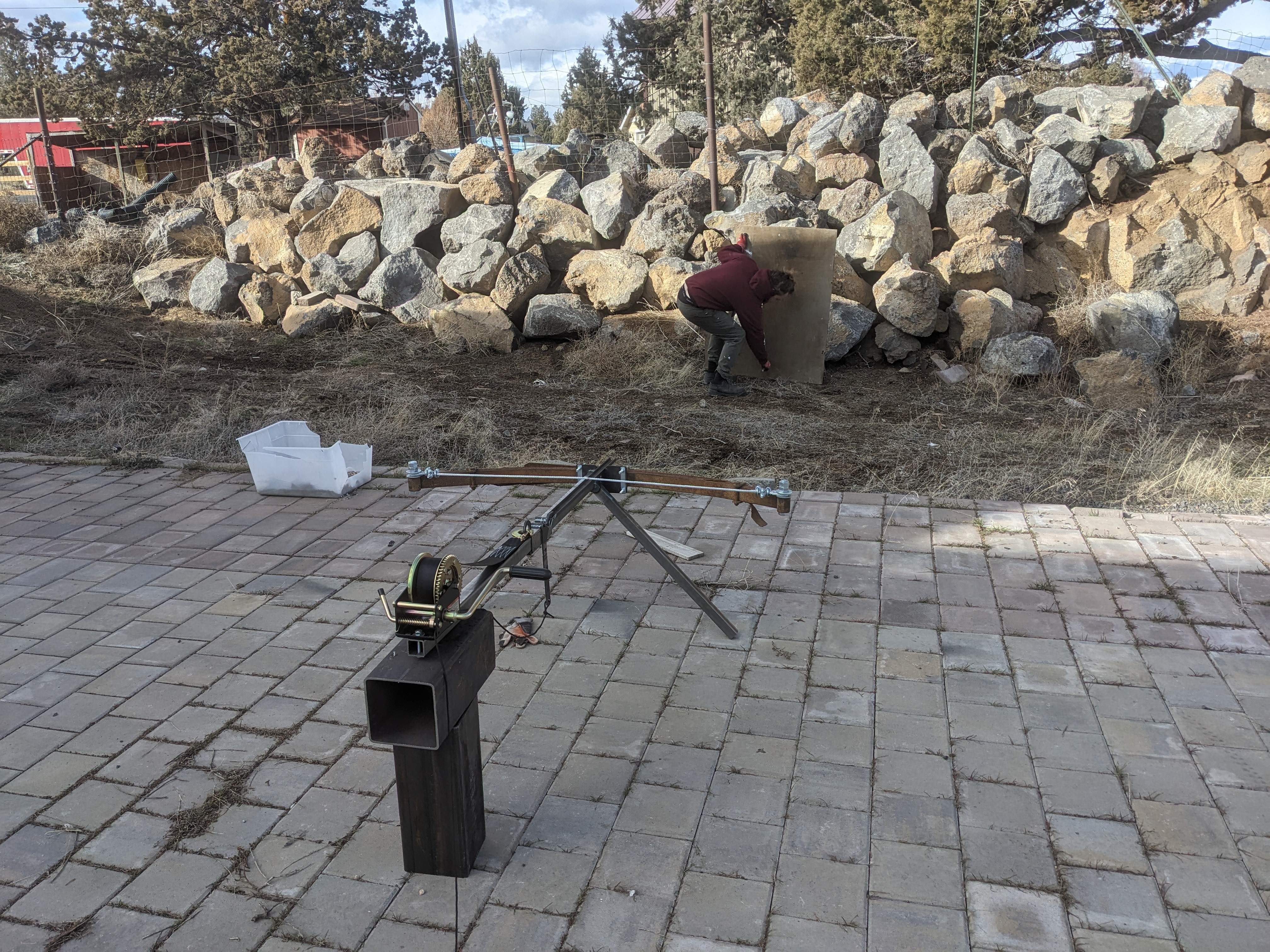

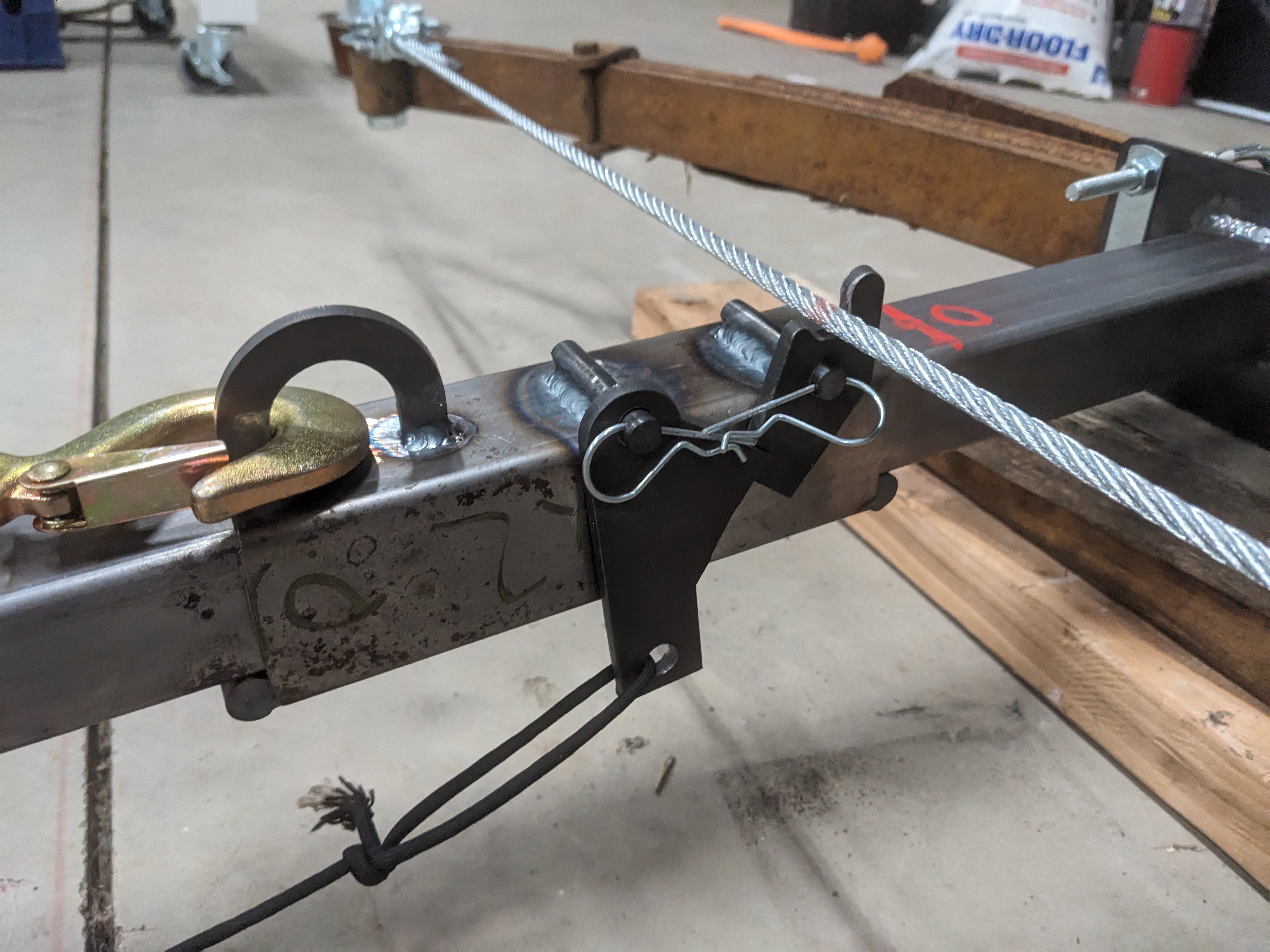

Prototyped and tested a mechanical trigger system for consistent, reliable string release
